PRODUCT SPECIFICATION:

1) Display:2.4inch TFT color LCD

2)Back lighting: On/off White LED

3) Depth Capability: 147feet(45m)

4) Sonar Coverage: 90 degrees beam angle in 125Khz

5) Wireless operational Range: 1108-1CW:328feet(100m); 1108-1CWLA:(60m)

6) Power: 3.7V rechargeable lithium batteries

7) Waterproof design: level-4(spray-water-proof)

8) Water depth,water temperature, fish location, bottom contour can be constantly obtained from the water

9) User selectable sensitivity zoom,units,depth range,shallow alarm,fish icon,fish alarm,and chart speed setting

10) Built in memory stores sonar setting when the fish finder is turned off

11)It's better to charge the device before use.

12)Operational Temperature: 14degF to 122degF(-10degC to 50degC)

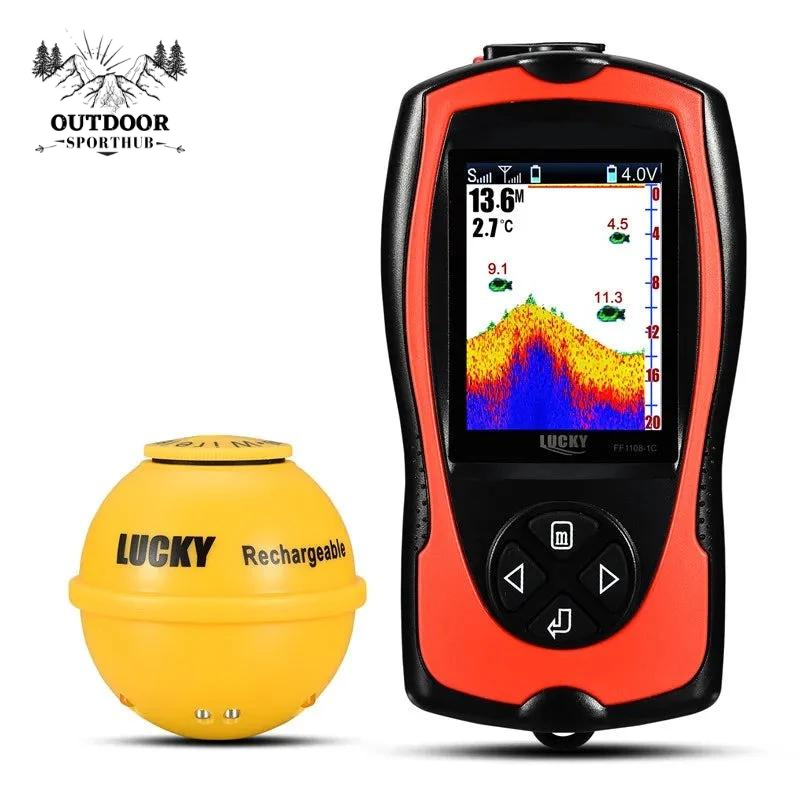

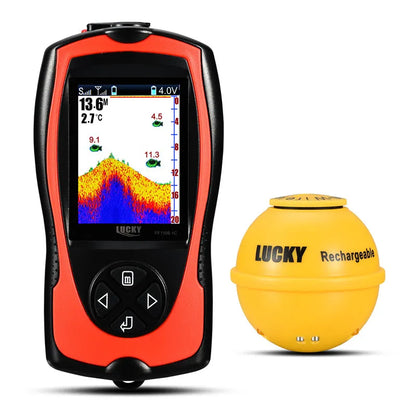

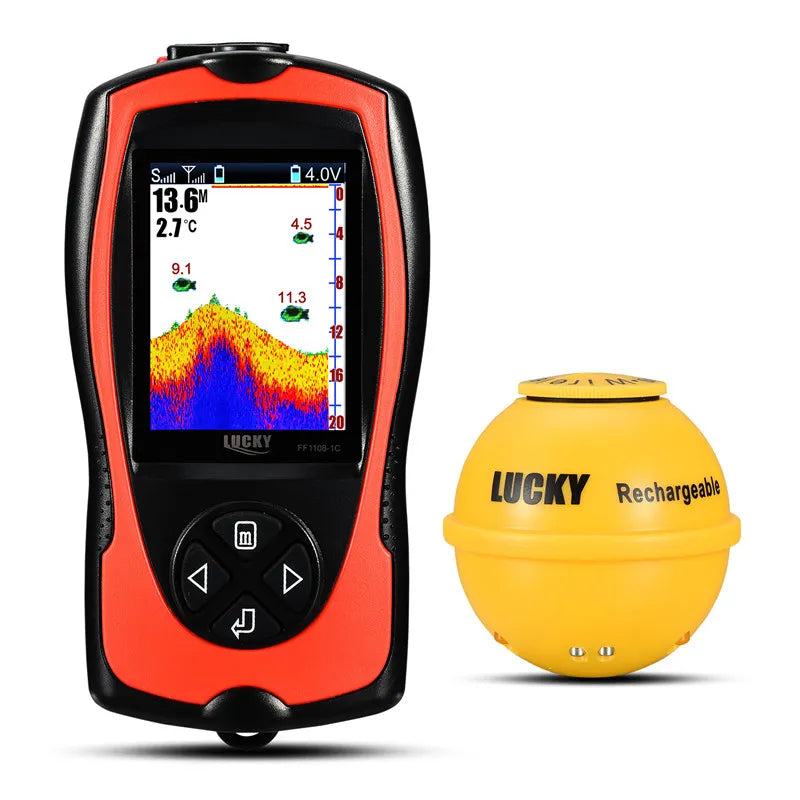

This model is Wireless fish finder

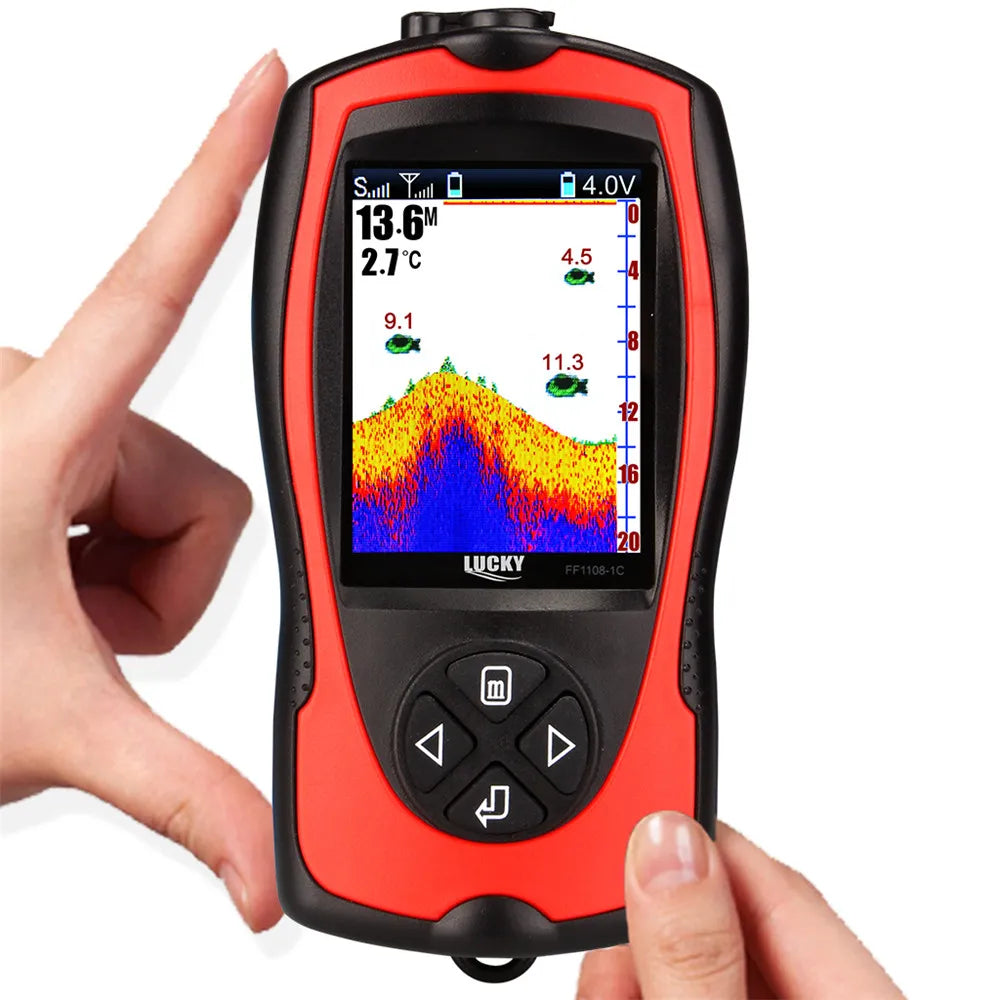

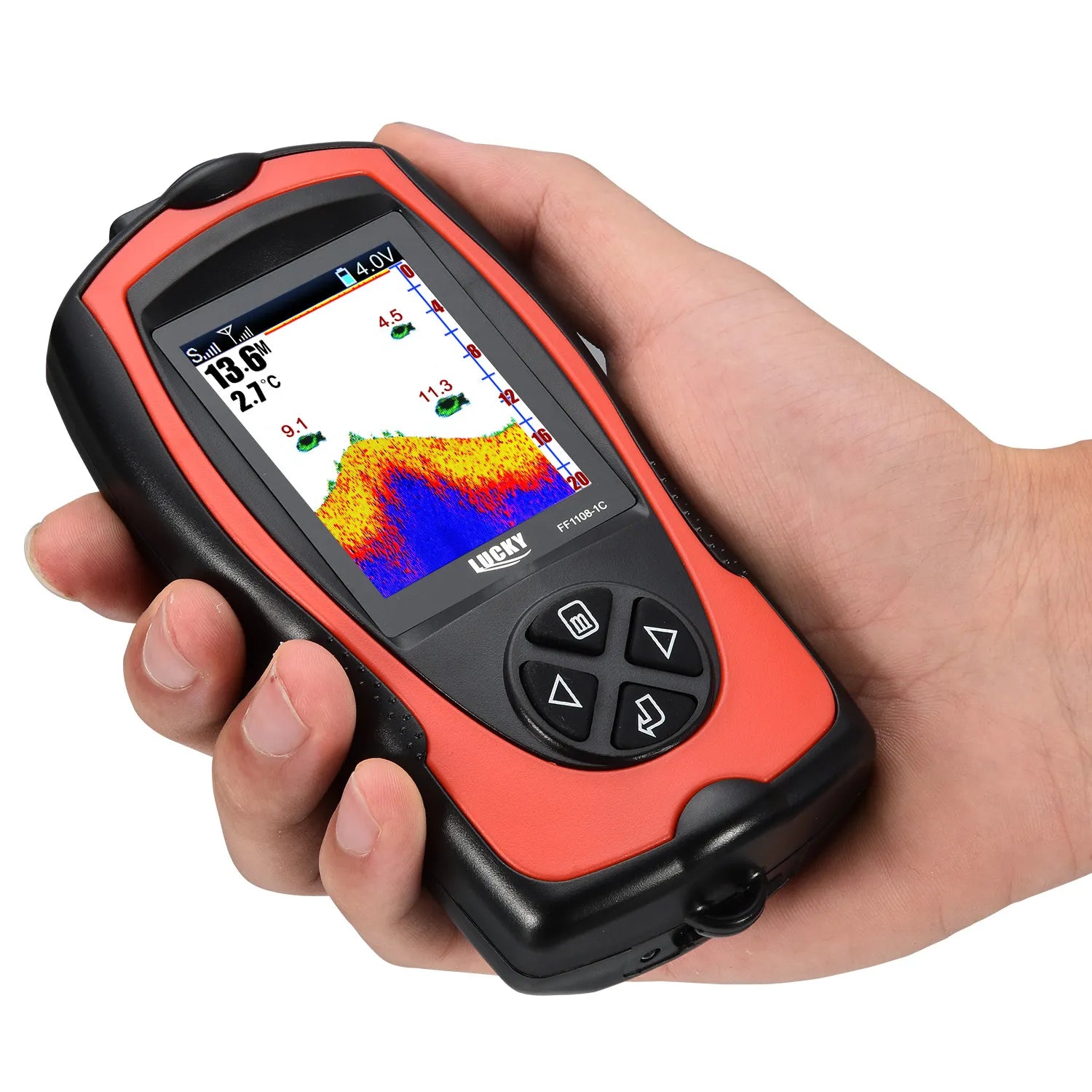

HIGH DEFINITION LCD can clearly display the underwater condition.

fish attractive lamp makes fishing easier by luring fishes

Fish alarm: Selectable Large, Medium, Small fish

adjustable sensitivity setting: Selectable 9 levels of sensitivity

60m wireless operating range& 45m detective water depth

self-adjusting depth scale:  Seletable specified water layer fish information

1.Wireless Signal 8.W-sensor Battery Indicator

2.Sensitivity 9.Battery strength indicator

3.Water depth 10.Depth upper limit

4.Water temperature 11.Water surface

5.Medium fish icon with depth 12.Small fish icon
with depth

6.Bottom contour 13.Large icon with depth

7.Left arrow 14.Depth low limit

15.Menu key

16.Right arrow

17.Power on/off

Upgraded new version:
No need to screw down the cover.
Turn on when put into water,
 turn off when out of water.

New and old models are shipped randomly

New and old models are shipped randomly

New and old models are shipped randomly

Working indicator (blue)

Charging Port

Charging Indicator(red)

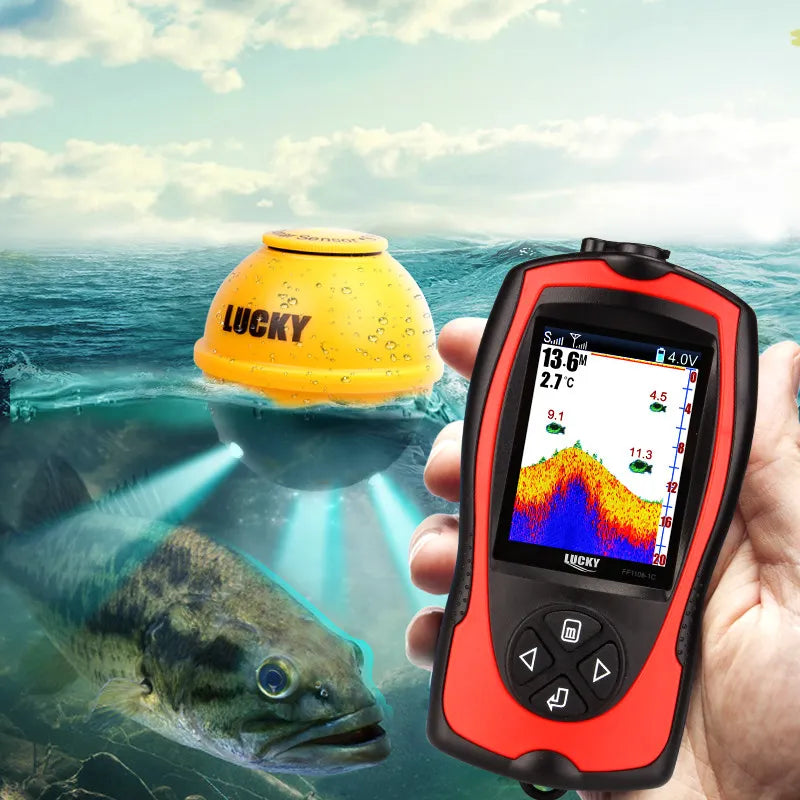

How to use Lucky fish finder?

1.Tie it to the end of fishing line and cast it into the water
2.wireless sonar sensor send sound waves
3.returned echoes transmitted to the fish finder
